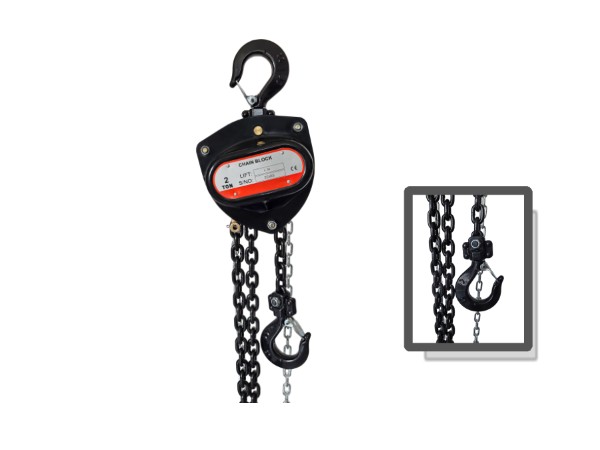

VE Chain Hoist

CHAIN BLOCK VK ORIGINAL JAPAN TECHNOLOGY Meets all international standards such as GS,CE,EN,ANSI,AS/NZS1418.2 Seal typecaged ball bearings on load sprocket Seal type caged roller bearings on the main shaft(Minimize manual effort thanks to efficient drive train) Superior design of top hook holders for several columns of load chains Experience exceptional durability thanks to all-steel construction featuring rugged gear case enclosure and handwheel cover Enjoy increased lifting height thanks to low headroom G80 heat treated alloy load chain Reinforce double pawl brake system and lager dia. pawl springs ensure reliable brake Thrust bearings in bottom hook assembly

Message inquiry

Telephone consultation

Product introduction
Product specification
Product packaging

Product introduction

1. Capacity from 500kg to 20 ton .
2. Lifting height 3 meters or as customers' request .
3. Chain block covers are made of high strength alloy steel , and impact-resistance, well protect the inside parts .
4. Upper and lower hooks are made of high strength casted alloy steel and heat treated , which prevent the hooks breaking even when overloading , with safety latch .
5. Three sealed roller bearings to make chain block working smoothly and reduce pulling force .
6. Double pawl system , make chain block more safely .
7. Load chain : G80 high strength alloy steel .
8.Chain wheel : made of superior quality alloy steel .

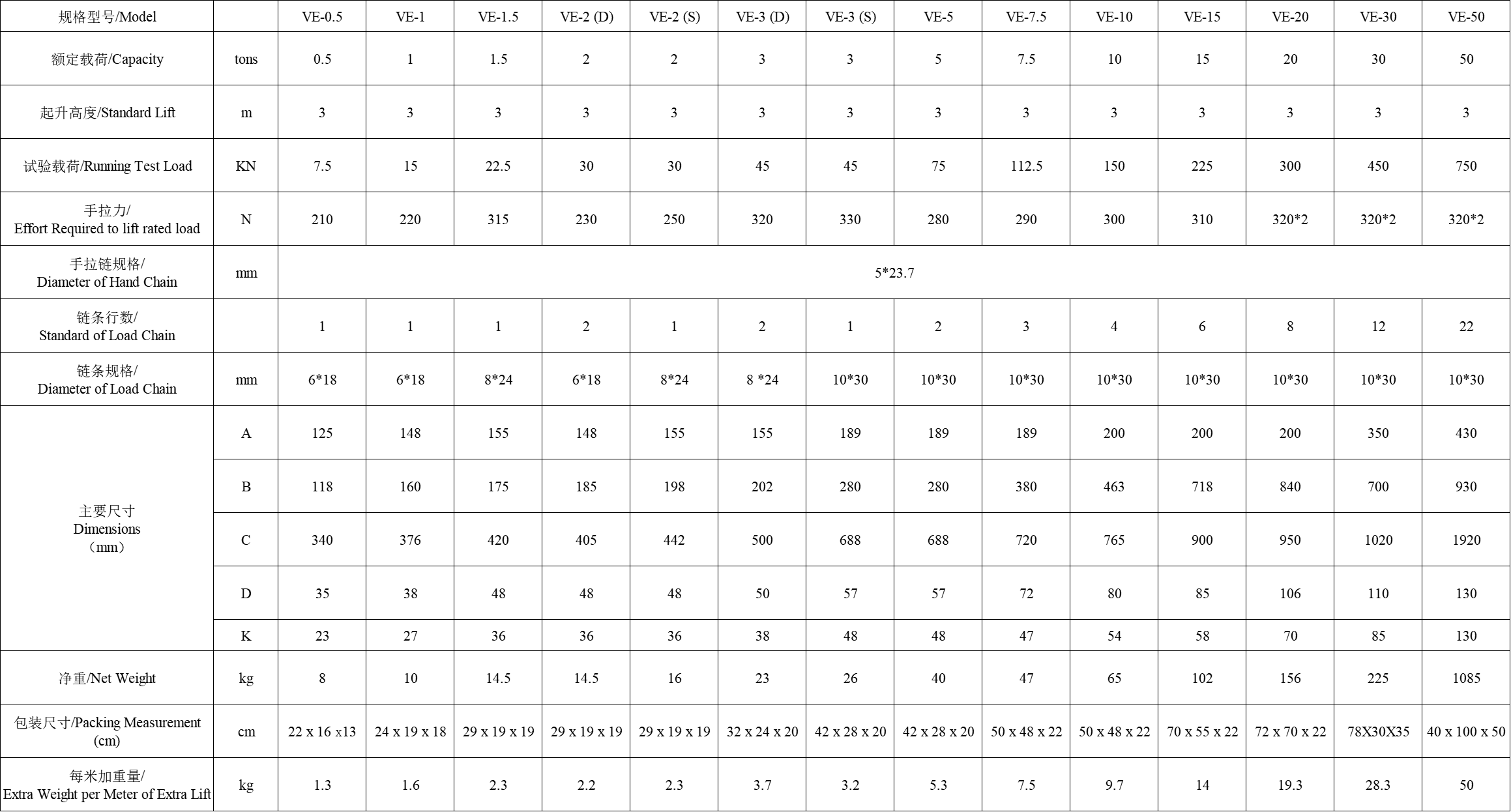

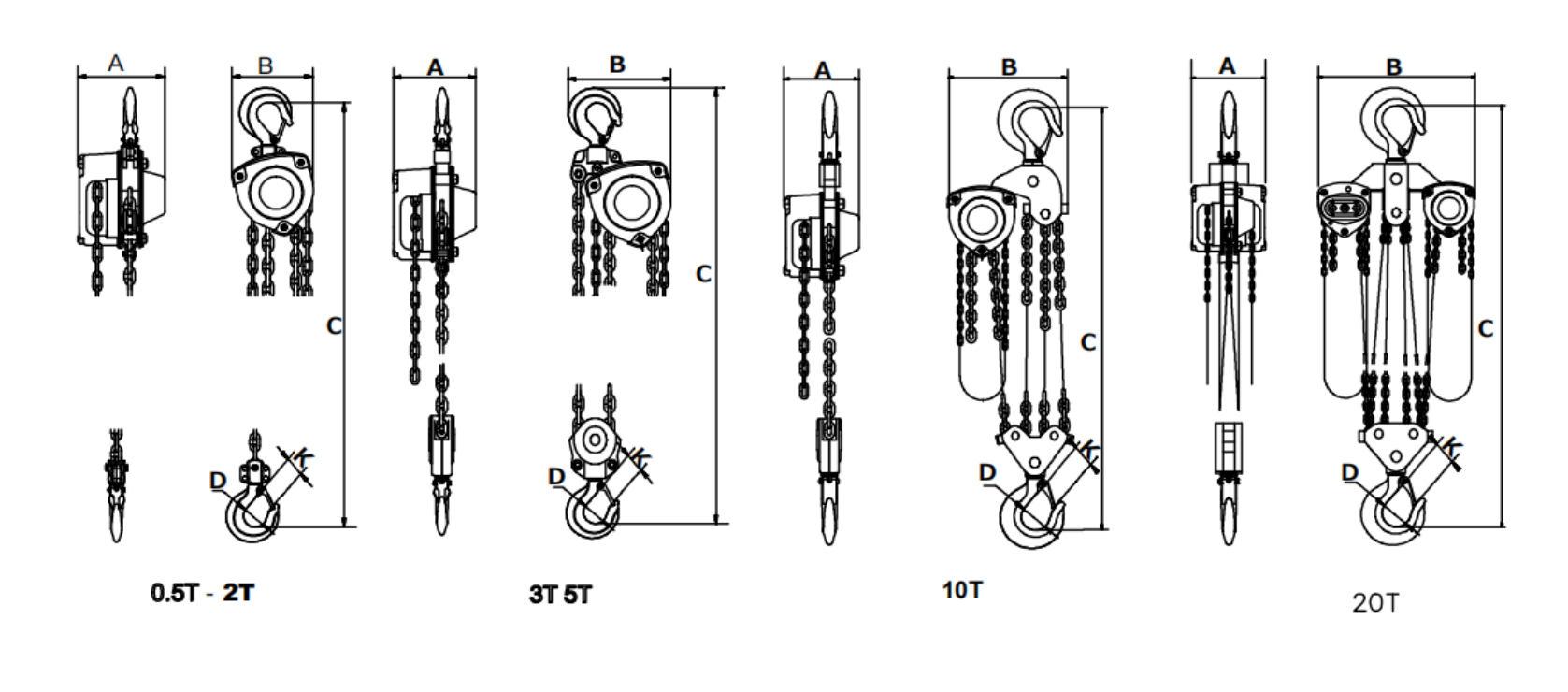

Product Specifications

Product specification

Product Packaging

Product packaging
